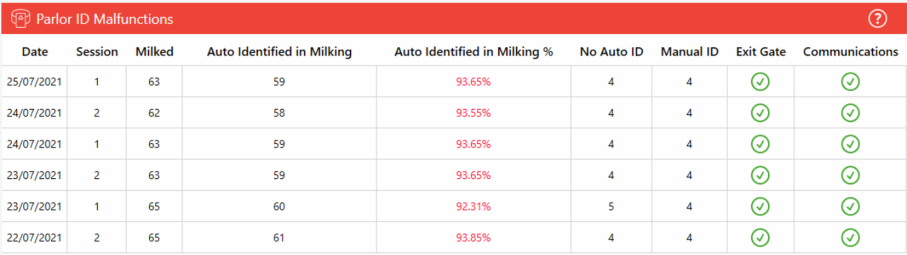

Column	Description
Session	Indicates milking session.
Milked	displays the total number of cows milked in the parlor during the session (Cows identified and those not identified).
Identified in Milking	Displays the total number of cows identified during the session.
Identified in Milking %	Displays the rate (%) of cows identified during the session. Expected ID rates should exceed 98%. Anything below this percentage causes data loss and must be corrected. ID rates that drop below 96% are displayed in red.
No Auto ID	Displays the number of cows not identified by the RFID system (Manual ID + not identified). Note: Both Manual IDs and no IDs indicate problems with the ID system.
Manual ID	Displays the number of cows identified manually during the last session.
Entry Gate	A fault symbol indicates a malfunction in reading entry gate opening/closing.
Exit Gate	Fault symbol indicates a failure to recognize the exit gate opened. This may cause accumulated milk weights.
Communication	Fault symbol indicates a communication malfunction with the ID controller.

Possible causes for lower ID Rates include:

• General communication problem with the ID Controller – communication faults cause a dramatic reduction in ID Rate and loss of data and are very apparent during milking. There is also a risk that irregular cows will not be identified, possibly resulting in milking contaminated milk into the bulk tank.

• Exit/Entry gate sensors fault –failure to detect opening/closing of parlor gates may also result in failure of initiating ID requests in the parlor and loss of data.

• Lower ID rates in general –may be caused by electro-magnetic interference affecting the parlor RFID (Radio Frequency ID).

• Malfunctioning antennas –faulty antennas are identified in the Stall ID report.
